Giving Shape to Ideas



Product Highlights

  • Output Size :Min. 90 x 115 mm; Max. 320 x 1,195 mm
  • Output Type :Full colour (CMYK)

Recommended User

  • Paper Width:   330mm
  • Recommended Usage:   Paper: Non-tack paper, tack paper, Film: Tack film (synthetic paper, PP, PET)

Copy Speed(A4/Letter Crosswise)

Just the right size “ Perfect Fit ” Label Printer

“AccurioLabel 230” has been created to take center stage on the globally-expanding digital label market.

A digital label printing system that offers enhanced productivity, job flexibility, operability and excellent image quality with affordable system cost, is a “Perfect Fit” for business expansion and parallel use with existing analogue presses..

Digital Label Printing

Merits of introducing digital printing

Print jobs of various kinds and short-run jobs are increasing compared to long-run jobs of the past and printers are required to cope with orders with a quick turnaround. Taking advantage of the flexibility of digital printing, these orders that are difficult to handle with an analogue printing press can now be handled efficiently. In addition, values can be added to the print product using VDP or numbering, which helps differentiate the user among ever-diversifying market needs.

Applications realised by AccurioLabel 230 to meet a wide range of diversifying needs

Enhanced Productivity & Flexibility

To meet demands of digital printing business such as shorter turnaround and expansion of print application,AccurioLabel 230 improves overall productivity and job acceptability especially overprinting capability on pre-printed transparency or coloured media.

Fast print speed up to 23.4m/min.

Most of tack papers and tack films can be printed with the maximum print speed of 23.4m/min. The print speed enhanced from previous model realises faster turnaround time and contributes to expand the printing business.

Short warm-up time

Warming-up time from job to next job is minimised by no turning off of fusing unit. It not only improves overall production efficiency by the minimum job switching time, but also minimise the paper waste.

Long continuous printing up to 1,000m

Accepting larger size production without switching time and paper losses. When the toner coverages is low, a print mode that adds colour belts on both sides of paper is available for the long length printing that supplies necessary amount of toner to keep the developer fresh. The colour belts are not necessary when the toner coverage is 3.5% or above

Mouse-compatible operation panel

The large 15-inch display adopted is easy to view and operate. The angle of the panel can be freely adjusted to suit the user and the easy-to-understand GUI and guide messages ensure high operability when making settings. A USB mouse can also be connected to improve operability.

Wide media compatibility without pre-treatment

Thanks to digital toner HDE and Konica Minolta’s low-temperature fixation technology, AccurioLabel 230 is compatible with a wide range of media including not only ordinary and matte paper, but also glossy paper, tack paper and film essential for label production. The user can not only select the ideal media to match applications but also print labels without the need for preprocessing.

Over printing capability with accurate registration

Over printing kit (Optional) is provided to enhance the usability. It enables digital 4-colour printing on pre-coated media with accurate registration that is realised by newly adopted eye mark sensor.

Food grade safe toner

The toners of AccurioLabel 230 are in compliance with FDA standards by the evaluation of the authorised organisation considering the safety of indirect food packaging label.

*The FDA standard is stringent safety standards to the potential product that consumers are in contact with food, pharmaceutical and cosmetic by FDA (Food and Drug Administration).

Banner printing capability

As well as store decoration and floor POP displays, the system can be used for long posters, signboards and an extensive range of other applications. The ability to offer promotional proposals with media mixes combined with labels also contributes to business expansion.

Excellent & Consistent Quality

High image quality is realised by Konica Minolta’s unique technology through faithfully facing the high-level
needs in digital print market. Colour fluctuation is controlled within the minimum under various condition, which ensures stable and beautiful finish for the first through to the last prints. High image quality that brings higher value of printed material generates advantages for the print services.

High resolution 3,600 (equivalent) × 1,200dpi × 8bits

Combined with the reproductive capability of digital toner HDE, small characters and fine lines can be printed clearly and colour images beautifully output in rich gradations.

S.E.A.D. V

Enhanced Konica Minolta’s Image processing technology S.E.A.D. V backed up with new generation of image processing ASIC and fully automated colour adjustment functions promise to provide print products with the best quality.

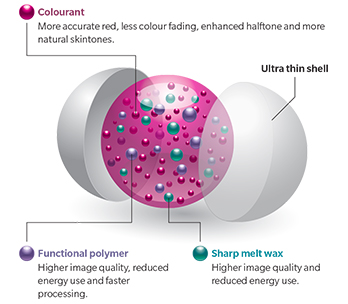

Simitri HDE toner

A 3D hybrid structure that contains functional polymers ensures a high level of compatibility with various types of media and enables realisation of ideal natural textures. In addition, it requires only asmall amount of heat for fusing, significantly reducing power consumption.

  • 3-dimensional hybrid toner particles
  • Blue Wool Test: The results according to ISO 105 B2 (lightfastness test).

Remarks: The evaluation criteria is classified into 8 levels (1 to 8 levels),and the higher the value, the higher the lightfastness.

*1: The test results indicate that the lightfastness of Cyan and Black toner is ranked as 8 or higher.

High quality screens

Equipped with a total of 12 types of screen, 6 dot screens, 3 line screens and 3 stochastic (FM) screens, the system can be matched to applications and purpose such as proof output, photograph printing and moire suppression.

Line thinning & edge enhancement technologies

Furnished with a precise outline processing function that reduces blurring and streaking to realise high quality even for colour or outline characters.Characters on food or ingredients labels, for example that tend to be small, or barcodes can be printed clearly.

Auto-refining developing system

A new carrier is supplied together with the toner to refresh the carrier in the developer, stabilising the developer condition to maintain high image quality throughout the system lifetime. The longer developer
life also minimises downtime

Outstanding Operability

Compared not only to flexography but also liquid development and inkjet printers, AccurioLabel 230 ensures ease of maintenance. Tasks that take time on analog machines such as color adjustments can be performed with ease on a digital machine. The ability to perform operations simply by following on-screen instructions makes it possible to operate the machine with little time needed for training.

Color Centro

Equipped with colour management software as standard, allowing operation, editing and setting for colour correction, colour profile creation, etc. that best suits the digital press used..

AccurioPro Hot Folder

AccurioPro Hot Folder allows you to directly print a PDF or TIFF file without starting an application. You can also preset the job settings and reduce the burden of making print settings.

APPE 4.6

Equipped with Adobe genuine APPE 4.6. Capability of directly printing PDF files without using the print driver enables faithful reproduction of transparency. Optional UK-218 (APPE kit) required.

AccurioPro Label Impose

The AccurioPro Label Impose software tool provides the perfect solution. The application not only gives operators a simple and intuitive interface to automatically impose and prepare label jobs for printing. At the same time, the software also enables users to create PDFs as basis for the corresponding cutting tools on the die cutting equipment. Working seamlessly with the AccurioLabel 230, AccurioPro Label Impose perfectly complements Konica Minolta’s label press!.

Where to Buy

Please select your product type / state / city from below for contact information.

Where to Buy

Please select your product type / country / city from below for contact information.

Contact Us
Name *

Email *
Phone No.
Message *

Enter Security Code captcha

Customer Care (Toll Free)

Back to Top

Fast startup and output.

*1 WUT(Warm-up Time) :
The time between when the power switch is turned on and when copy operation can start.

*2 FCOT(First Copy Out Time) :
The time between when the Start button is pressed and the end of output of the first copy page.

A five-line graphical display for more clearer indications and simple guidance is available on the LCD screen.
This result in less time spent on searching information in the product manual.


Variety of duplex copy methods to fulfill different purposes.

- 1-sided ➞ 2-sided*1 :
Automatic double-sided copying.
- 2-sided ➞ 1-sided*2 :
A double-sided document can be copied into 2 pages with 1-sided each.
- 2-sided ➞ 2-sided*3 :
Automatically copy double-sided document to one sheet of paper.
*1 Optional Auto Duplex Unit AD-509 is required.
*2 Optional Reverse Automatic Document Feeder DF-625 is required.
*3 Optional Auto Duplex Unit AD-509 and Reverse Automatic Document Feeder DF-625 are required.

Output from a Linux environment is also available.

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) ×86
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64

Multi-page documents can be printed on one sheet. 2-in-1 prints 2 pages on 1 sheet, and 4-in-1 prints 4 pages on 1 sheet.

One touch ID Copy button allows you to copy the front and back side of any small documents such as Passport, Employee-id, Driving licence into one sheet of paper.
The readable range is up to A5 size.


The scanned files can be saved directly to USB memory, or sent to different destination such as E-mail*1, SMB*1 or FTP*1. The supported scan formats are TIFF, PDF and JPEG.
*1 Optional Network Interface Card NC-504 or PCL controller with NIC IC-209 and Option Panel MK-749 are required.


Both sided documents can be scanned automatically at once with optional RADF(Reverse Automatic Document Feeder DF-625).

Scan performance (1-sided per minute)

* When equipped with the Reverse Automatic Document feeder DF-625.
With the Konica Minolta's own Toner Loop Mechanism technology, there will be no more waste toner.

Different types of Watermarks can be added on the documents based on the purpose or importance level of documents.

The MFP can be set to request a 3-digit account number to use the Copy feature. To restrict users who are not authorized to use the MFP. Also, numbers of copies made under each account can be tracked.

The MFP will not perform any outputs until user enters the same password as it has been set in the printer driver. To prevent highly confidentiality documents being left on the MFP or taken by unauthorized user.
