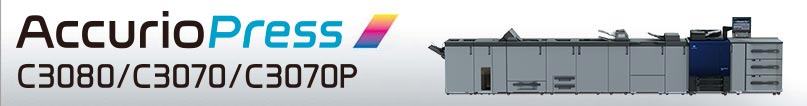

Accurio Press C3080-C3070-C3070P system specifications

identity



Specifications
AccurioPress C3080/C3070P/C3070 General Specifications
Model Name AccurioPress C3080 AccurioPress C3070 AccurioPress C3070p
Type Console type
Colour support Full color
Resolution Scan 600 dpi x 600dpi NA
Print 3,600 (Equivalent) x 1,200 dpi
Gradation 8-bit / 256 gradation
CPU Core i5 4570S 2.9 GHz
Memory
HDD
10GB
1 TB x 3
Original Type Sheet, Book, Solid object
Max. Original Size A3 or 11×17
Max. Printing Area 323 mm x 480 mm (Banner paper: 323 mm x 1,295 mm)
Paper Size Standard: SRA3, A3, B4, SRA4, A4, B5, A5, A5S, 13×19, 12×18, 11×17,9×11,8 1/2×14, 8 1/2×11, 51/2×81/2S, Tab paper (A4, 81/2×11)
Max. 330 mm x 487 mm, Min. 140 mm x 182 mm*1
Multi-bypass (Option): SRA3, SRA4, A3, B4, A4, B5, A5, B5S, 13×19, 12×18, 11×17, 8 1/2×11, Postcard
Max. 330 mm x 487 mm, Min. 100 mm x 148 mm Banner Printing Mode: Length 488 to 1,300 mm
Image Loss Max. 4.0 mm or less for top edge, Max. 4.5 mm or less for bottom edge, Max. 3.0 mm or less for right / left edges
Warm-up Time 390 seconds or less (at room temp 20°C, rated power supply)
First copy
Out Time*2
Black & White 4.0 seconds or less
Full Colour 6.1 seconds or less 6.5 seconds or less
Continuous Print Speed
Full Colour/Black & White*3
81/81 pages/min. (A4 landscape)

45/45 pages/min. (A3)
71/81 pages/min. (A4 landscape)

39/45 pages/min. (A3)
71/81 pages/min. (A4 landscape)

39/45 pages/min. (A3)
Copy Magnification Fixed Same Magnification 1:1+0.5% or les NA
Scaling Up 1:1.154/1.224/1.414/2.000 NA
Scaling Down 1:0.866/0.816/0.707/0.500 NA
Preset 3 types NA
Zoom 25 to 400%(in 0.1% increments)
Tray Capacity Standard: 1,500 sheets (80 gsm) Option: Multi-bypass, 250 sheets (80 gsm)
Paper Weight 62 gsm to 350 gsm (Coated paper: 81 gsm to 350 gsm)
Main Unit: 62 gsm to 216 gsm
PF-707m, MB-506: 62 gsm to 350 gsm
MB-508, PF-602m, LU-202 XLm, LU-202m: 62 gsm to 300 gsm
Continuous Print Count Up to 9,999 sheets
Auto Duplex SRA3, SRA4, A3, B4, A4, B5, A5, B6S, A6S, 13×19, 12×18, 11×17, 9×11, 8 1/2×14, 8 1/2×11, 5 1/2×8 1/2S, Postcard
Max. 330 mm x 487 mm, Min. 100 mm x 148 mm
Paper Weight: 62 gsm to 350 gsm
Paper Output Capacity 150 sheets (with an optional Output Tray OT-511)
Power Source Inch : AC208 to 240V, 24A, 60 Hz
Metric : AC220 to 240V, 25A (EU)/20A (AU), 50 Hz / 60 Hz
Power Consumption Inch: 5,760W or less (Main unit only)
Metric: 6,000W or less (EU)/4,800W or less (AU) (Main unit only)
Dimensions ( W x D x H ) 800 mm x 903 mm x 1,076 mm (Main body + Original Cover)
Space Requirements 631 mm or more in the front (for sliding out ADU unit), 200 mm or more from the rear duct, 100 mm or more on the both sides
Weight Approx. 316 kg
*1: To be fed from Tray-2.
*2: When A4 landscape original is scanned on the platen (zoom 100%, Tray-1).
*3: Print speed may vary depending on paper type.
Controller IC-605A IC-313 ver.2.1 IC-417 ver.2.1 IC-314 ver.2.0
Type Built-in main unit (AIO) Server Built-in main unit Server
Manufactured by KM EFI EFI Creo
CPU


Memory
Comforms with main unit specifications

10GB(Standard of the main body)
+ 4 GB(IC-605A) + 4 GB(UK-104) Max. 18GB
Intel Core i5 4570S 2.9GHz

4GB
Intel Pentium G4400 3.3GHz

4GB
Intel Core i7 4790S 3.2GHz

12GB
HDD 1TBx3 (IC-605); 1TBx3+500GB
(IC-605+UK-104*)
1TB 500GB User: 1TB
Image: 2 TB
System Linux Windows 10 Linux Windows 10
PDL
language
PostScript3 (CPSI3020);PDF
Ver.1.7; TIFF Ver.6 compliant;
PPML Ver.2.2; PCL5c compatible;
PCL XL (PCL6 Ver.3) compatible;
APPE Ver.4.2; PDF/VT Ver.2
PostScript3 (CPSI3020); PDF
Ver.1.7; PPML Ver.3.0; APPE
Ver.4.4; PCL (5,6) emulation
PS3(CPSI3020); PDF
Ver.1.7;PCL (5,6) emulation
PostScript3 (CPSI3020); PDF
Ver.1.7; APPE Ver.3.4; PPML
Ver.2.2; PPML/VDX
Creo VPS; Optimized PS;
PDF/VT2
Supported
protocol
TCP/IP, NetBEUI, IPP, WSD,
SMB, Bonjour
TCP/IP, SNMP, IPP, FTP, SMB,
Bonjour, LPR
TCP/IP, SNMP, IPP, FTP, SMB,
Bonjour, LPR
TCP/IP, SMB, Bonjour, LPR
Compatible
OS
Windows 7, 8.1, 10; Windows
Server 2008 (R2), 2012 (R2),
2016 (incl. 64bit version);
MacOSX 10.9-10.13
Windows 7, 8.1, 10; Windows
Server 2008R2, 2012/R2,
2016 ;MacOSX 10.9-10.13
Windows 7, 8.1, 10; Windows Server
2008R2, 2012/R2, 2016 ; MacOSX
10.9-10.13
Windows 7, 8.1, 10
Windows Server 2008, 2012, 2016
MacOSX 10.8-10.12 (TBD)
Driver PS Plugin, PPD PostScript3 PostScript3 PostScript3

Product appearance, configuration and/ or specifications are subject to change without notice.

Where to Buy

Please select your product type / state / city from below for contact information.

Where to Buy

Please select your product type / country / city from below for contact information.

Contact Us
Name *


Email *

Phone No.

Message *

Enter Security Code captcha


Customer Care (Toll Free)
1-800-266-2525

Back to Top

Fast startup and output.



*1 WUT(Warm-up Time) :
The time between when the power switch is turned on and when copy operation can start.

*2 FCOT(First Copy Out Time) :
The time between when the Start button is pressed and the end of output of the first copy page.

A five-line graphical display for more clearer indications and simple guidance is available on the LCD screen.
This result in less time spent on searching information in the product manual.


CLOSE

Variety of duplex copy methods to fulfill different purposes.

- 1-sided ➞ 2-sided*1 :
Automatic double-sided copying.
- 2-sided ➞ 1-sided*2 :
A double-sided document can be copied into 2 pages with 1-sided each.
- 2-sided ➞ 2-sided*3 :
Automatically copy double-sided document to one sheet of paper.
*1 Optional Auto Duplex Unit AD-509 is required.
*2 Optional Reverse Automatic Document Feeder DF-625 is required.
*3 Optional Auto Duplex Unit AD-509 and Reverse Automatic Document Feeder DF-625 are required.


Output from a Linux environment is also available.

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) ×86
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64

Multi-page documents can be printed on one sheet. 2-in-1 prints 2 pages on 1 sheet, and 4-in-1 prints 4 pages on 1 sheet.


One touch ID Copy button allows you to copy the front and back side of any small documents such as Passport, Employee-id, Driving licence into one sheet of paper.
The readable range is up to A5 size.

CLOSE

The scanned files can be saved directly to USB memory, or sent to different destination such as E-mail*1, SMB*1 or FTP*1. The supported scan formats are TIFF, PDF and JPEG.
*1 Optional Network Interface Card NC-504 or PCL controller with NIC IC-209 and Option Panel MK-749 are required.

CLOSE

Both sided documents can be scanned automatically at once with optional RADF(Reverse Automatic Document Feeder DF-625).

Scan performance (1-sided per minute)

* When equipped with the Reverse Automatic Document feeder DF-625.
CLOSE
With the Konica Minolta's own Toner Loop Mechanism technology, there will be no more waste toner.
CLOSE

Different types of Watermarks can be added on the documents based on the purpose or importance level of documents.

The MFP can be set to request a 3-digit account number to use the Copy feature. To restrict users who are not authorized to use the MFP. Also, numbers of copies made under each account can be tracked.

The MFP will not perform any outputs until user enters the same password as it has been set in the printer driver. To prevent highly confidentiality documents being left on the MFP or taken by unauthorized user.
